1) Max working speed:300mm/s(X);100mm/s(Z);300rpm(θ)
2) Thickness: 0.1-1.0mm, depends on the laser power
3) Laser tube type: optical fiber laser
4)Voltage: 220V 50HZ AC15A
5) Minimum width of cutting slit: 20um
6) Ensure minimal heat effect zone
7) Built-in digital control for parameter setting

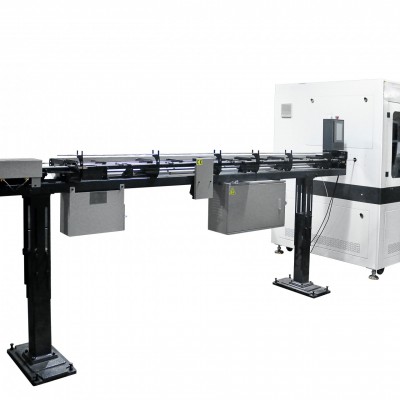

8) Built-in automatic tube feeding mechanism

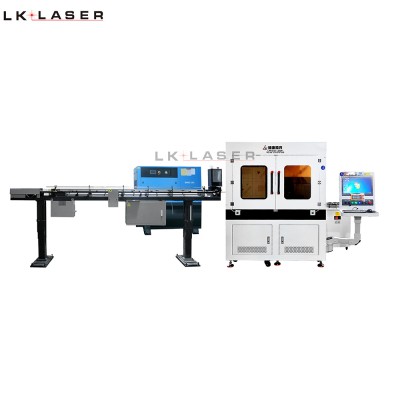

9) Fully automatic cutting machine with cypcut software
| Model | LK-JMW |
| Laser Power | 200W/500W1000W/1500W |
| Laser Source | GW |
| Laser cutting head | Raytools /EC+optics / Ospri |
| Laser Wavelegth | 1064nm |
| Laser Type | Optional Fiber |
| Tube Diameter | 0.3-15mm |
| Wall thickness | 0-2mm |
| Tube types | SS,Niti,CoCr,Mg+, Fe+ and other kinds of metal tubes |
| Travel distance | 500mm(X);100mm(Z); |
| C Axis Working Speed | 200r/min |
| Transaltion speed | 60m/min |
| Precision | ±3um X axis, ±25 arcsec θ axis, ±3um Z axis |
| Re-precision | ±1um X axis, ±3 arcsec θ axis, ±1um Z axis |
| Minimum Width of Cutting Slit | 20um |
| Consistency of cutting slit | ±5um |
| Frequency | 0-50KHZ |
| Stable of power | <±3%(continuous working 8 hours) |
| Diameter | 0.3-16mm |
| Input data format | DXF |
| Laser Beam | M2<1.1<> |
| Power supply | 220V single phase |
Power options : 200W/ 500W/1000W/ 1500W
mportant;"/>Machine with high precision cutting head with fine fiber beam to cutting micro-medical stent, needle, endoscopic, catheter, ultrosonic scalple
mportant;"/>Automatic accuracy clean cut burrs free for cutting intricated and complex designs in medical tube
Feature :
Machine provide high accuracy clean edge cutting on medical tube without burss, its adopt fine core beam laser source and precision cutting head with minimal thermal heat affected zones. high speed cutting and automatic capabilities to improve production efficiency

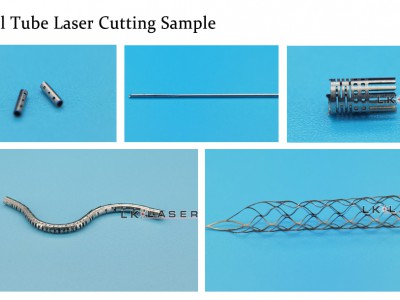

Key applications of medical tube cutting machine process
1.Cathether manufacturing

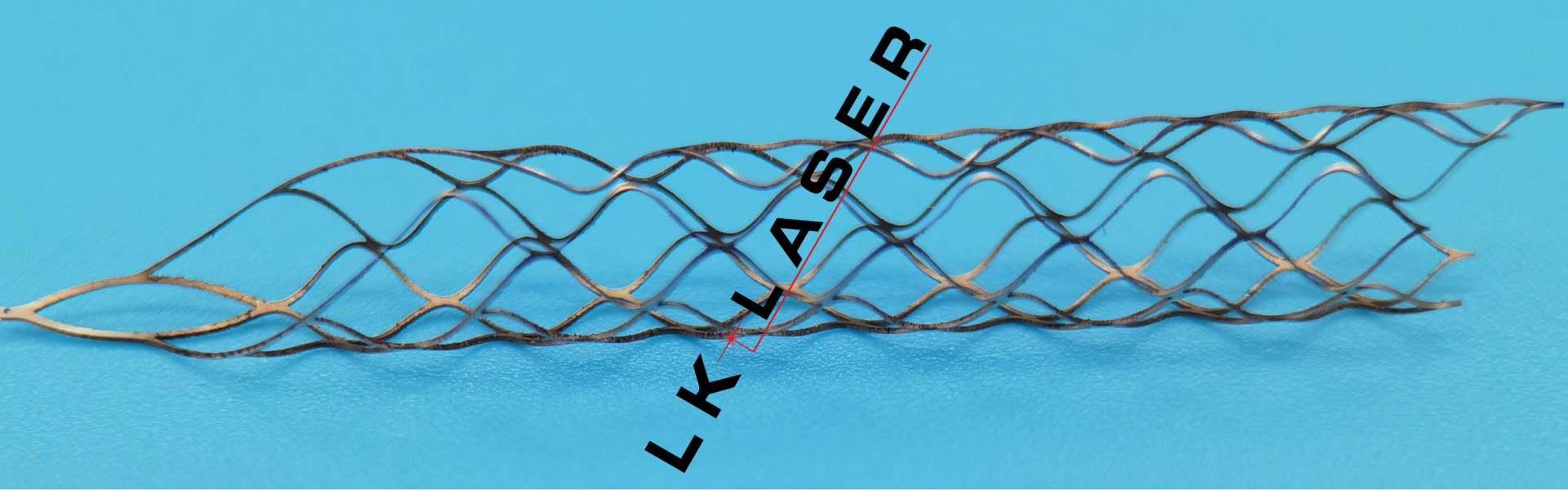

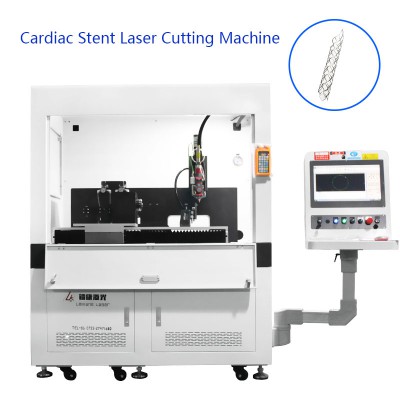

2. Stent production

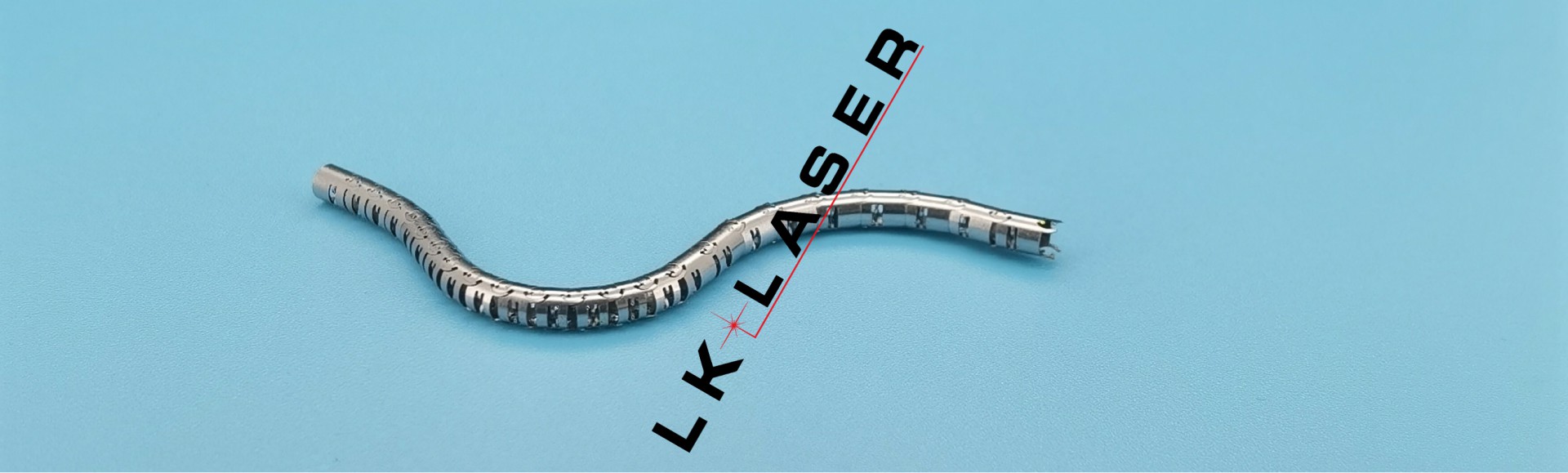

3.Endoscopic fabrication

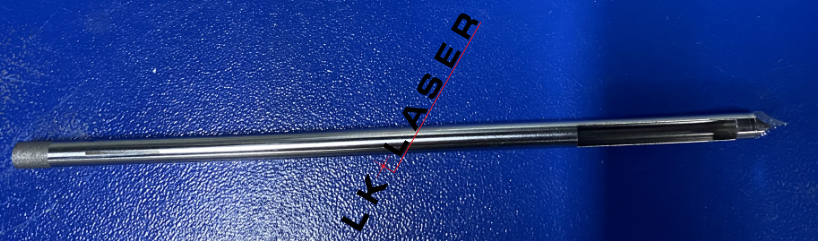

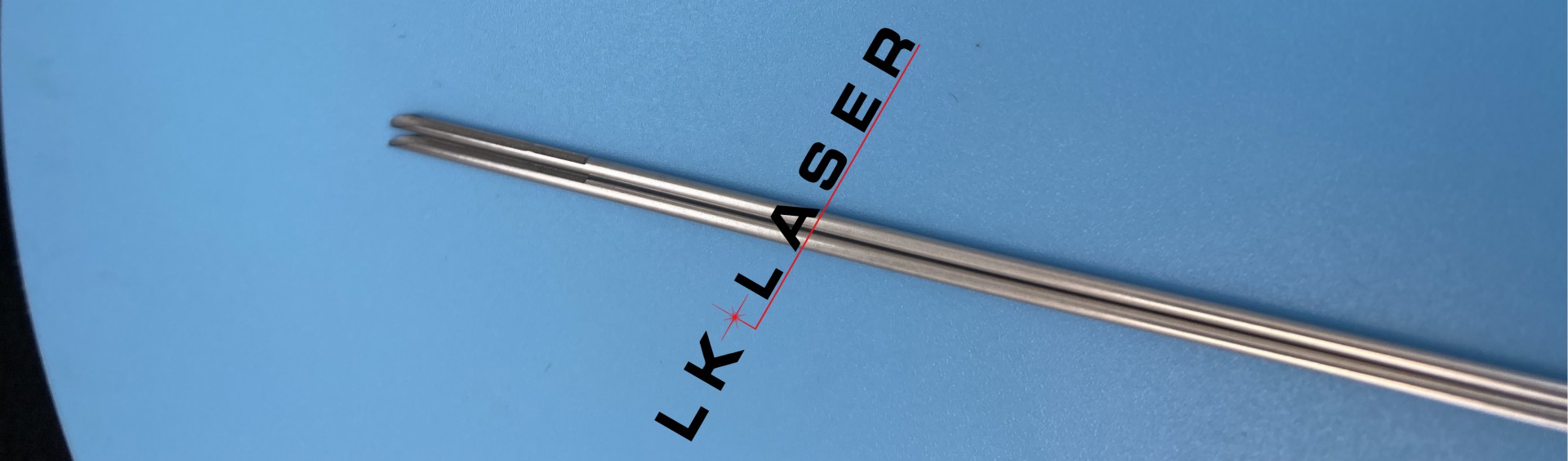

4. Needle or cannula and biopsy process

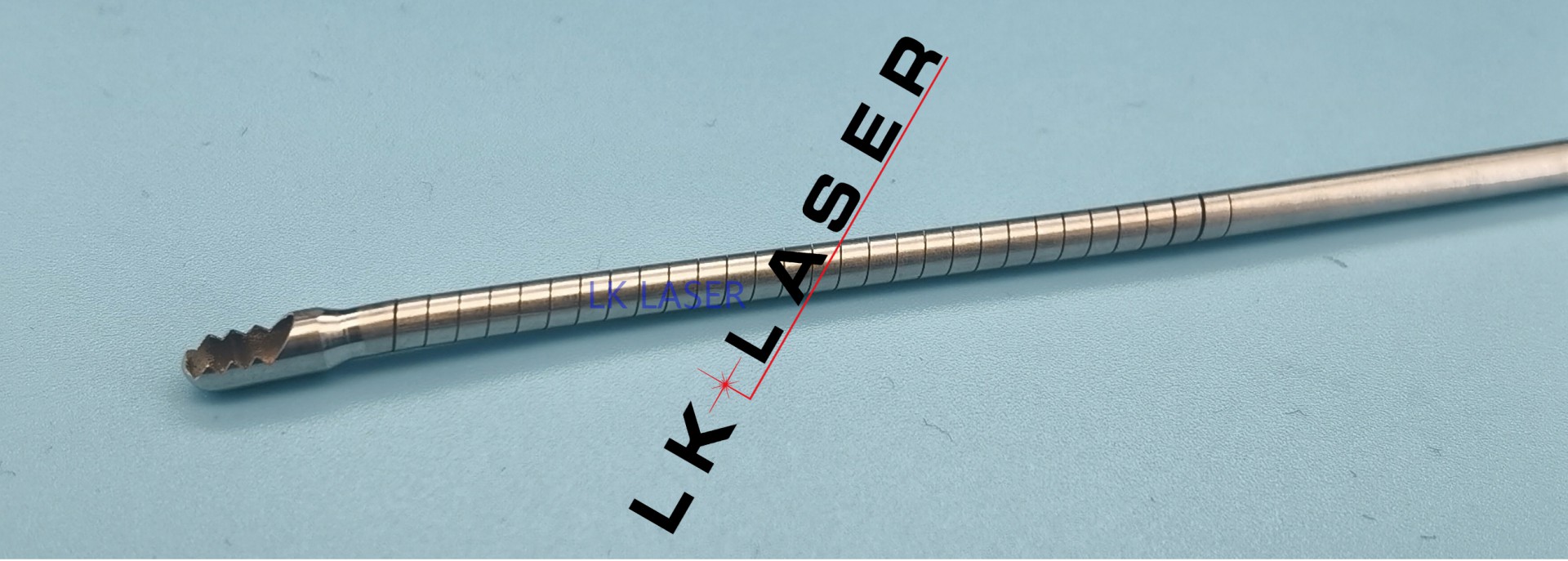

5. Hypotube cutting
6. Microfluidic pipe

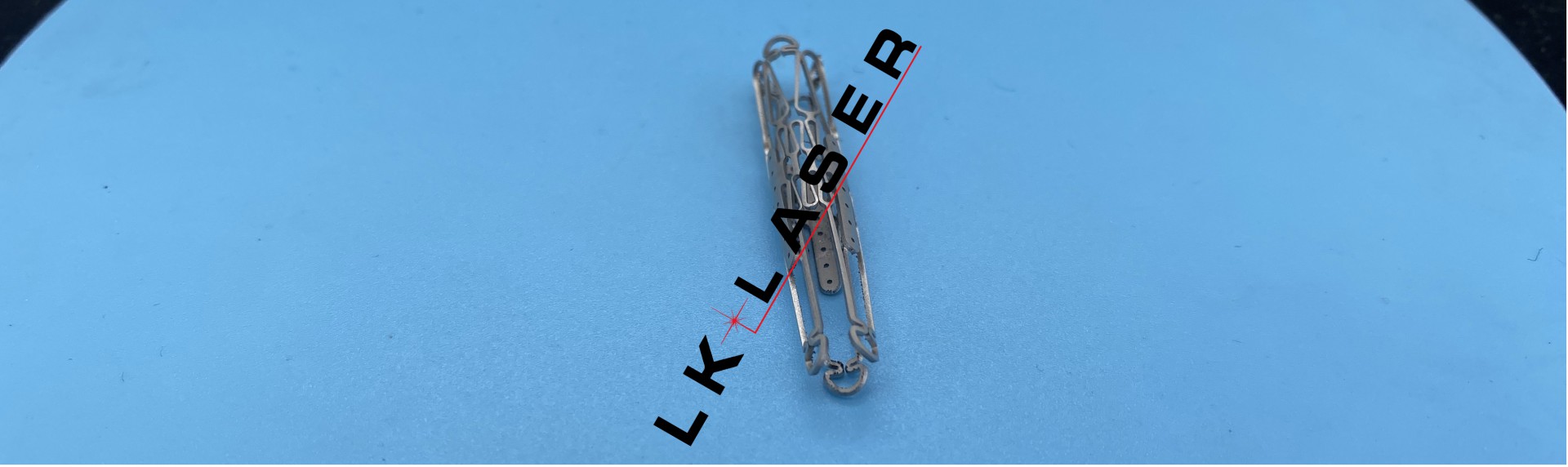

7. Implantable device

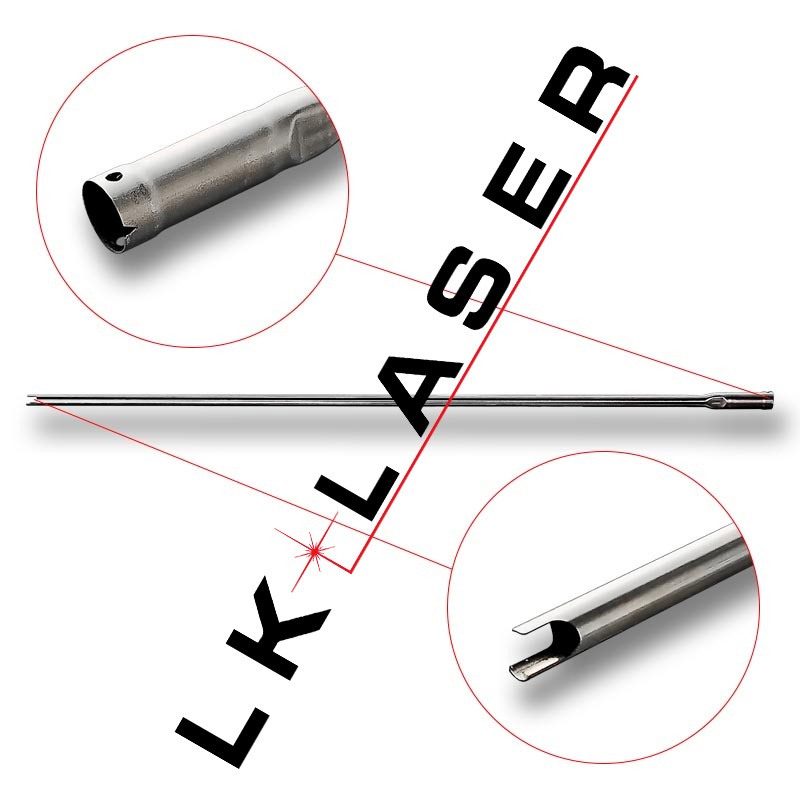

8. Orthopedic Implants
