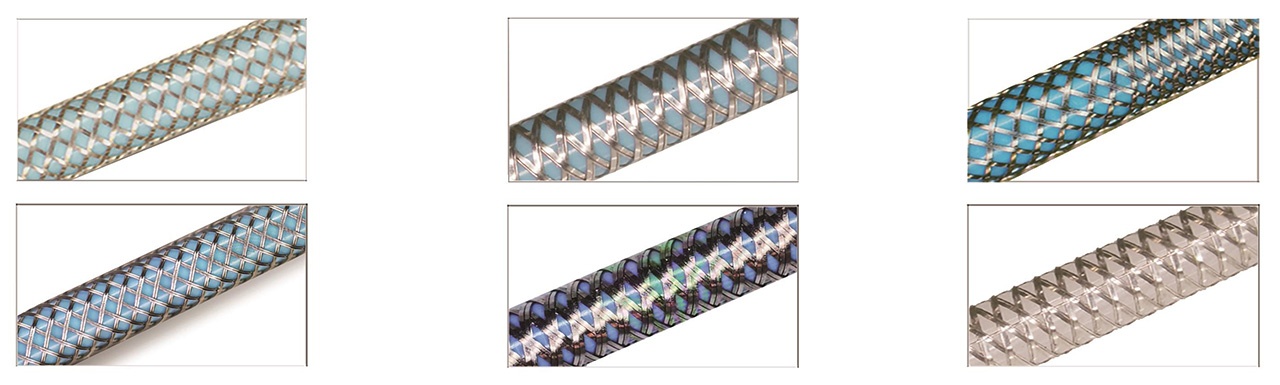

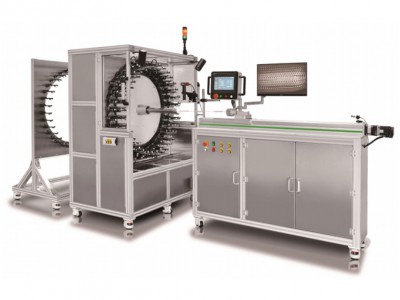

The Horizontal Catheter Braiding Machinery is mainly suitable for the medical industry. It includes: braiding machine, traction, lubrication system, electrical control system, microscopic imaging system. The machine is driven by servo motor and equipped with HMI in English & Chinese language. These machines are applied for the braiding of various catheter or enhanced layer of sheath for Intravascular or human nature cavity, such as intracranial nerve micro-catheter, intermediate access catheter, angiography catheter, guide catheter, disposable endoscope catheter, etc. It can be braiding different density segments to achieve the ideal performance of pushing, twisting and controlling, distal compliance. It can braid catheter or sheath from 1.5F to 27F. Other braided sizes can be customized.
卧式导管编织机系列主要适应于医疗行业。主体包括:编织主机，牵引机构、润滑系统、电气控制系统，显微成像系统。机身全部采用伺服电机驱动，配有人机交互界面;此系列编织机用于各类血管内介入或人体自然腔道内介入的导管或鞘管加强层的编织，如颅内神经微导管，中间通路导管，造影导管，导引导管，一次性内窥镜导管等。可进行不同密度的分段编织，达到理想的推送性、扭控性、远端柔顺性等性能。可以进行1.5F至27F的导管或鞘管的编织工作，如需要其它尺寸的编织作业，可按需定制。
